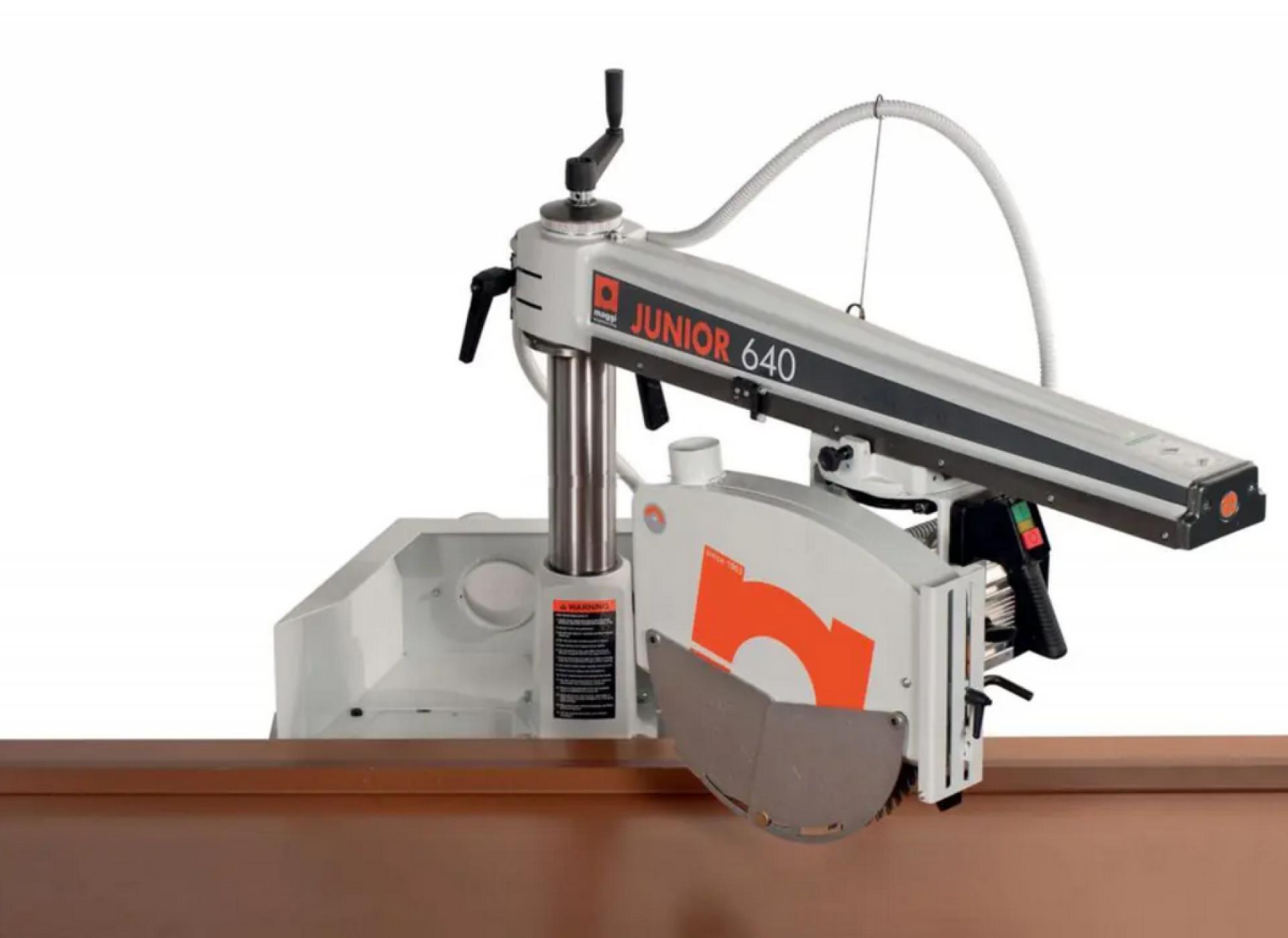

New Maggi Junior 640 Radial-Arm Crosscut Saw

New Maggi Junior 640 Radial-Arm Crosscut Saw

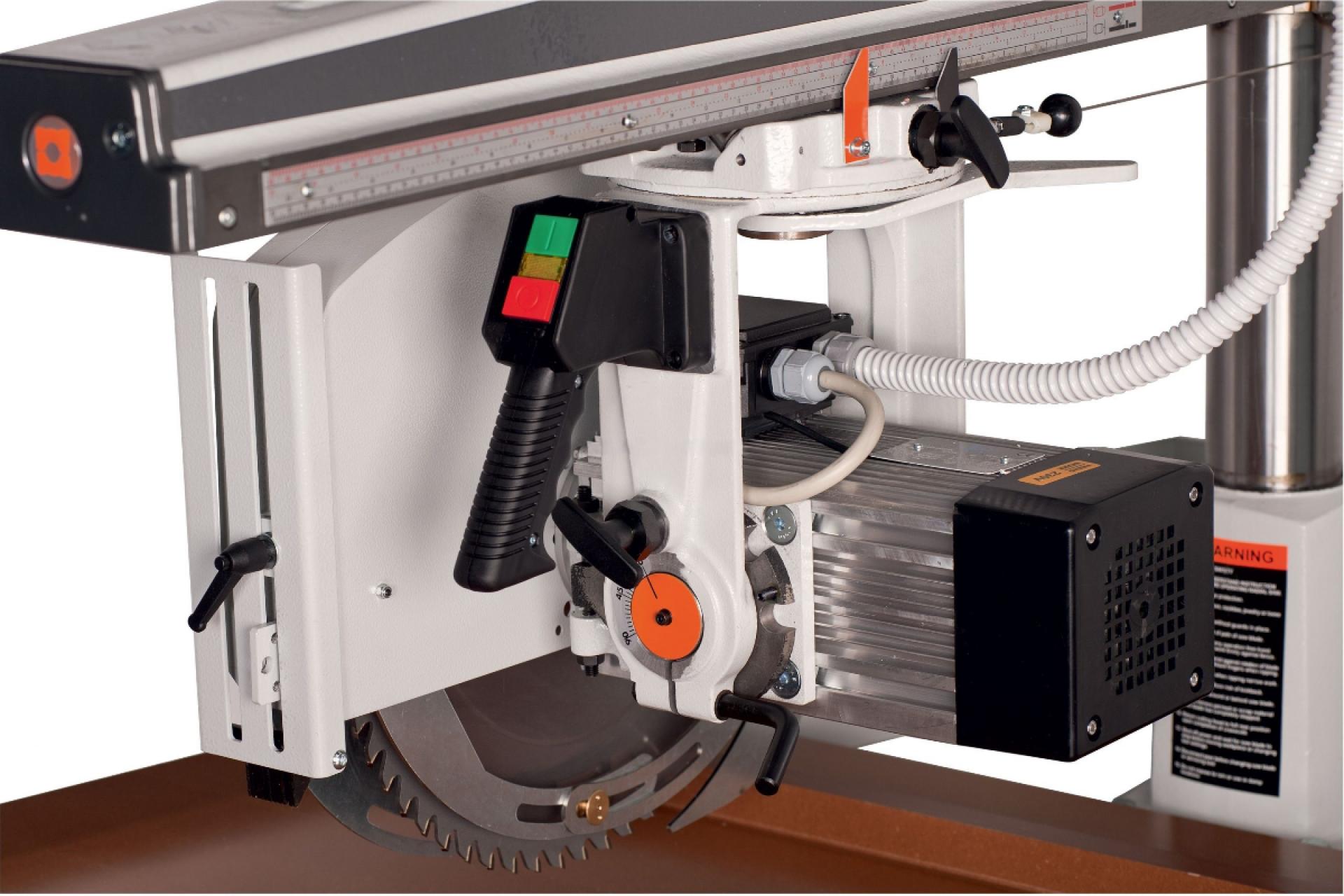

Manual Maggi Junior 640 Radial-Arm Crosscut Saw Radial-arm saw for straight (90°) cross cutting, ripping and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards. - Small footprint: well suited to small workshops - Easy to use - Versatile - Useful complement to panel saws STANDARD EQUIPMENT Automatic return-spring Self-braking motor Electrical system equipped with motor-overload protection and emergency button Sound-insulated blade guard made of steel Working bench Lockable switch Œ€400mm blade Maggi Junior 640 Cross Cut Tech Spec- -Max. cutting height 125 mm -Max. cutting width 545 x 20 h mm -Min. cutting width 450 x 125 h mm -Max. length of workpiece Infinite -Max. cutting width for ripping 0 - 860 mm -Cutting height at 45 ° 0 - 80 mm -Min. and Max. cutting width at 45° (right) 315 - 380 mm -Min. and Max. cutting width at 45° (left) 125 - 190 mm -Height of blade from working bench 0 - 45 mm -Blade diameter 400 mm -Blade bore diameter 30 mm -Motor 4HP RPM 2800 -Working bench dimensions 1690 x 1155 mm -Diameter of dust collection nozzle on blade guard 60 mm -Diameter of dust collection nozzle on rear hood 100 mm ( n.2) -Overall dimensions of full-assembled machine and net weight 1690 x 1560 x h 1580 mm / 220 Kg Optional*- -Laser guide* (The laser displays the line to be cut on the panel for a more accurate cutting process) -Independent roller table* -Single-phase Motor To have the machine working in small handcraft shops having an electric system running on 220V -350mm Blade* Maggi Technology, founded in 1963 in Tuscany (Italy), designs and manufactures woodworking machines created to respond to the needs of artisans and small-scale kitchen and furniture manufacturers. Our goal is to offer simple, efficient, and lasting solutions, for an investment suited to your needs and demands.
