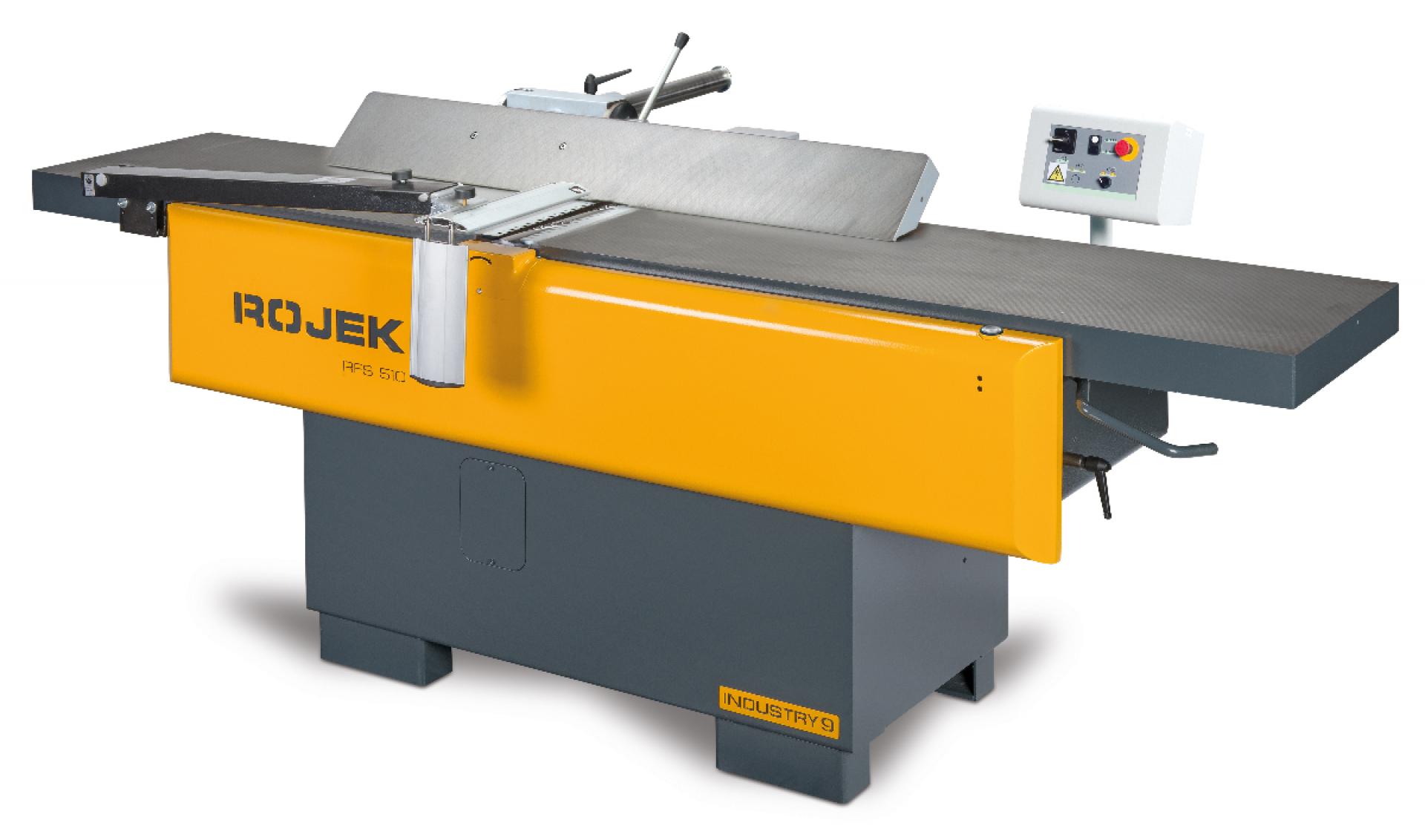

Planer Rojek RFS410 A new design solution which provides high precision and machine performance at low production costs. Long cast iron tables and a four-knife cutterblock guarantee the quality of material processing. The machine is equipped with a suction dust hood, cast iron fence with a special tilting mechanism. New Rojek RFS410 planer Tech Spec- -Motor power 5,3 kW -Engine speed 2 860/min.(3 432/min.[60Hz]) -Knife shaft diameter 116 mm -Number of blades 4 -Knife shaft speed 5 000/min. -Max. levelling width 400 mm -Max. levelling chip 8 mm -Angle of inclination of the tilting ruler 0° ÷ 45° -Length 2 600 mm -Width 1 120 mm -Max. machine height 1 070 mm -Display od splinters -Table stowage -Top control panel -Tersa cutter block -Approx. Weight 560 kg Optional*- -SPIRAL cutter block roller* -Upper control panel -Electric motor 7,5 kW S6/40% with top panel only -Ruler for machining thin pieces -Analogue knifestop The main advantage of the RFS410 and RFS510 comparison milling machines is the robust cast iron table One of the unforgettable advantages and strengths of the RFS series is the solid cast iron ruler, while competitors use an aluminium ruler Quick delivery from stock at Rojek HQ! Rojek was founded in 1921. Rojek have been supporting craftsmanship and artisans for 102 years. We understand their needs and produce timeless products for them that are passed down from generation to generation. Rojek are a stable Czech manufacturer that ranks among the world leaders in its field.
