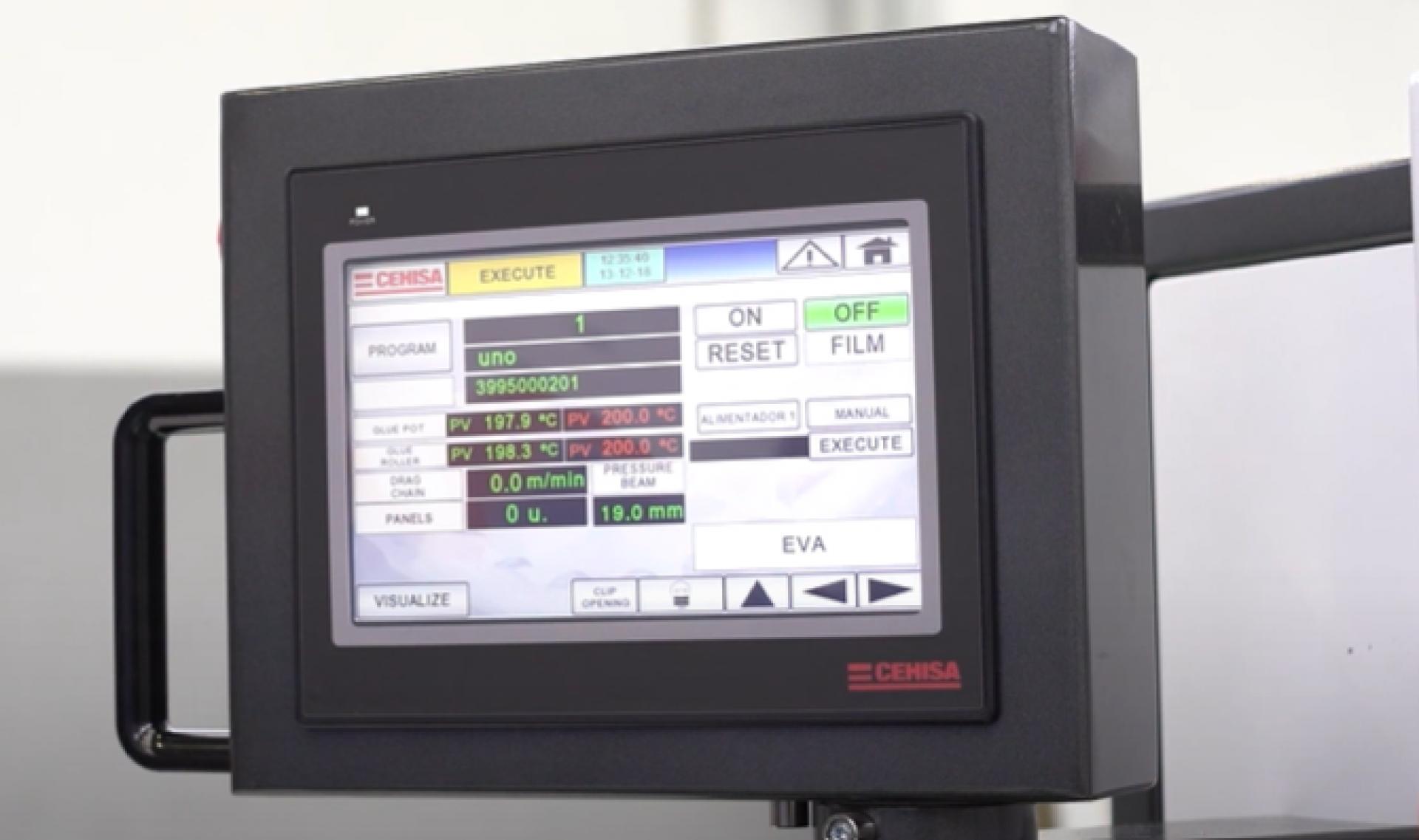

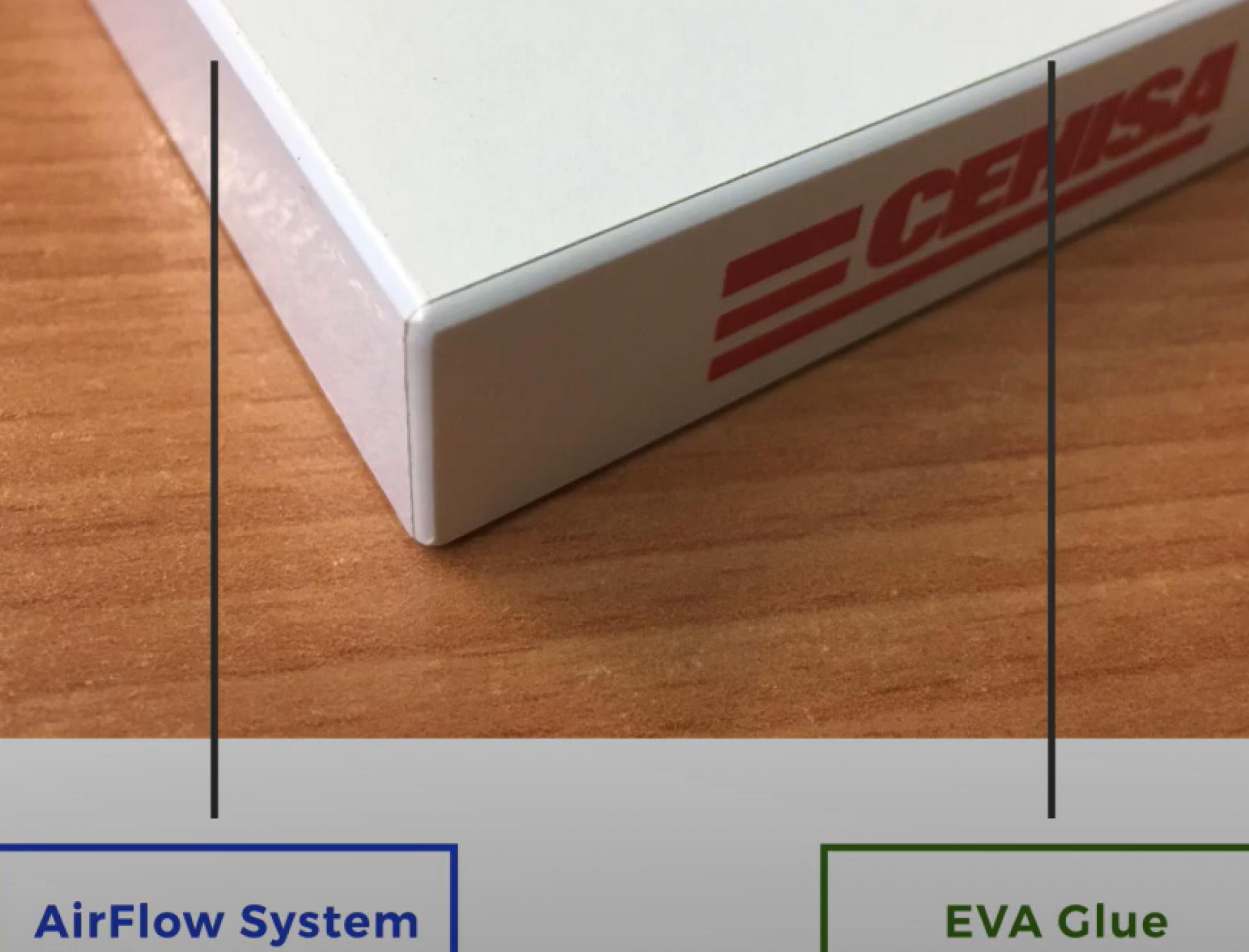

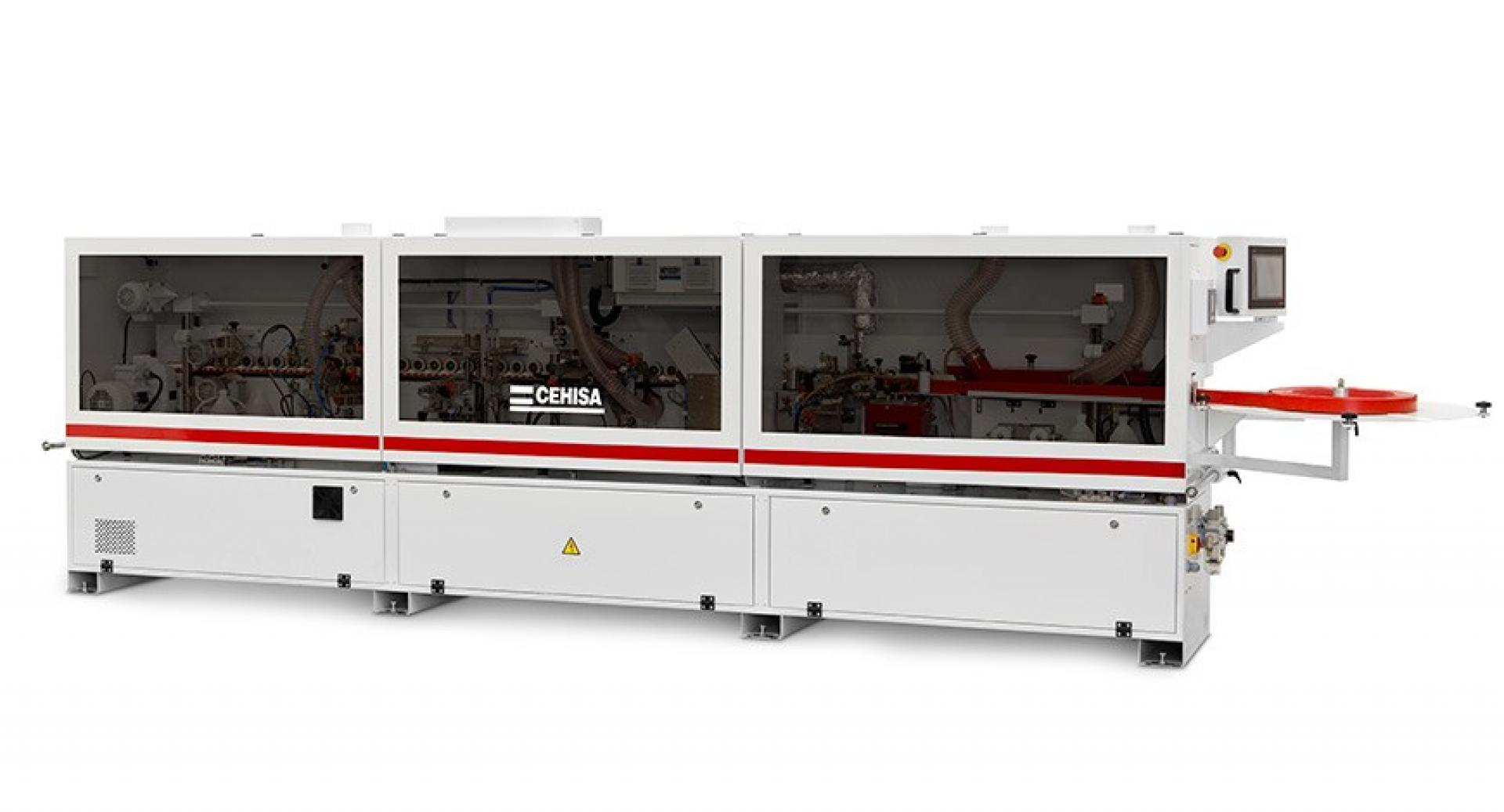

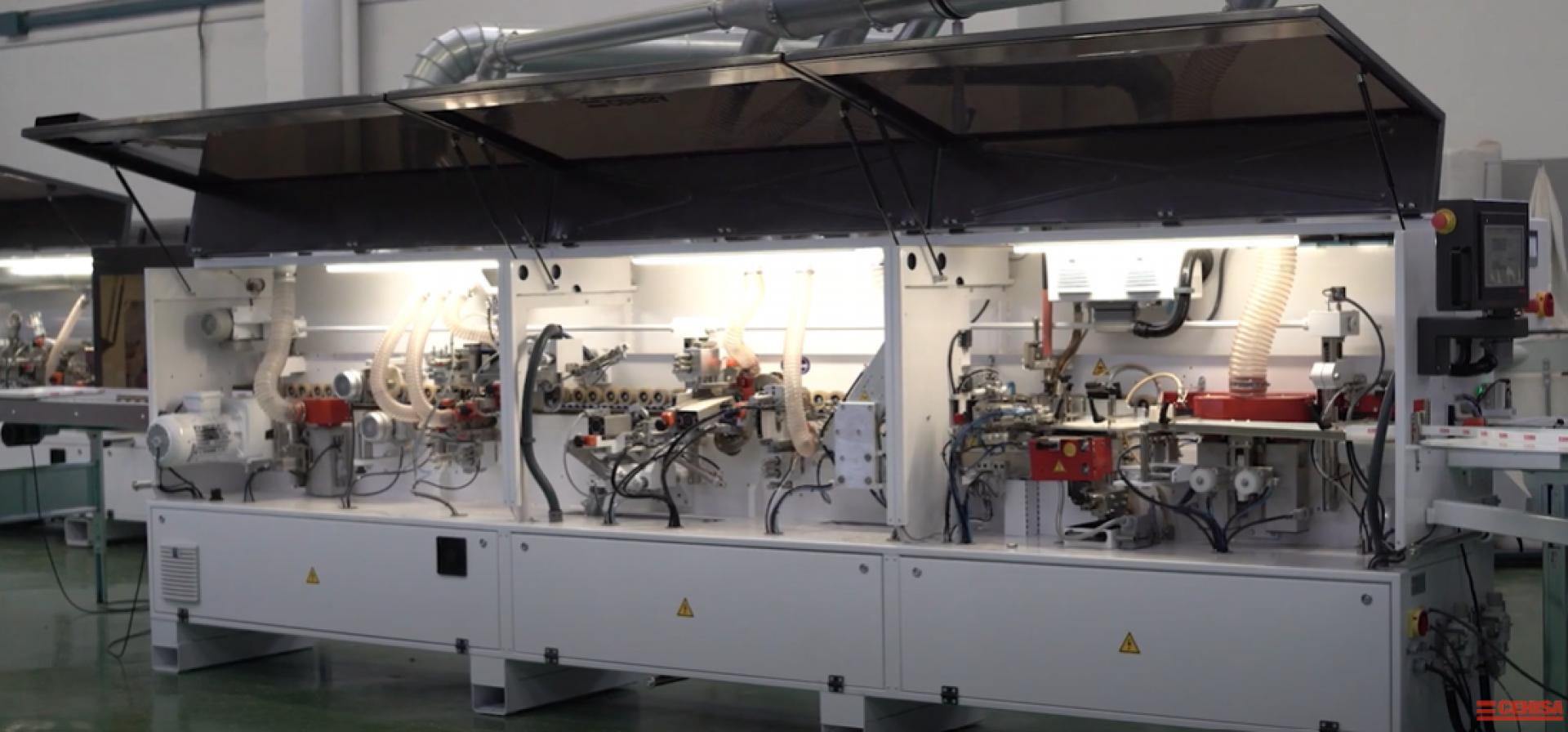

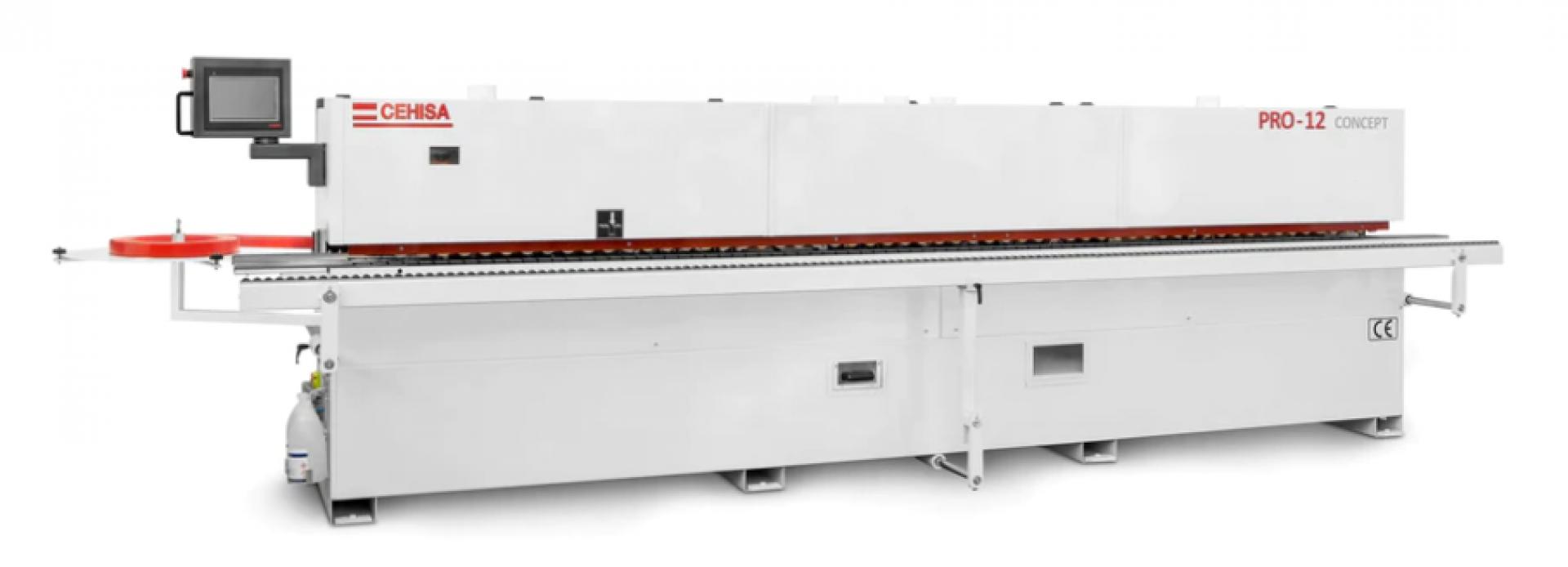

The PRO Series is a reference in the sector due to its great working capacity, easy handling and excellent finish quality. PRO Series can be equipped with all working groups, turning it into a highly qualified machine covering a wide variety of needs. Up to 11 MOTORIZED AXES that grants a full control of the edge bander and double blade system on the radius scraper for a perfect finish Cehisa Pro 12 Edge bander Tech Spec Edgebanding Materials -Melamine/PVC/ABS/PP/Veneers 0.4-3mm -Solid Wood Strips up to 5mm (8mm option*) Adhesives EVA/PUR/PO and AirFlow System Panel -Thickness, min-max 10-65mm -Length, min-max 120- Unlimited mm -Width, min-max 75- Unlimited mm Machine -Working Speed, m/min 9/14 -AirFlow System (The AirFlow System offers a perfect finish based on the direct fusion of the edge with the panel) -Pre Milling PF-12 cutting height 30/65mm -Industrial drag chain -Motorized pressure beam positioning from control panel -Pivoting 10" TFT Colour Touch Screen (User Friendly) -Feeding Station -Glue Application Unit M2-NS -Pressure Rollers -Corner rounding FD-60 (designed to round the 4 corners of the panel) - M1 Gluepot (Capacity to work EVA Hot-Melt adhesives, fully TEFLON Coated gluepot. -T and B Trimming Unit BC-S -NEW End Trimming v-8 -Dimensions 5618 x 660 x 1485 mm. -3 Phase -Air Pressure 6-7 Bar Optional -Solid Wood Strips 8mm* -DuoMelt Gluepot* (allowing the use of the unit both with EVA and PUR adhesives + efficient draining system for residual glue in the glue pot and the necessary software to support this feature)* -Glue Scraper RR-8* -Buffing Unit PC-S* -Radius Scraper RB-8 -Connectivity Kit for Remote Connection* -Working Speed 14m/min* Watch the Video CEHISA is an international Spanish company (factory in Barcelona) which has been dedicated to the manufacture of woodworking machinery and has specialized in the edge banding sector since 1968. Cehisa only manufacture Edge banders that's all they do so you know your getting a robust, reliable and quality machine with a fantastic finish. ALL EUROPEAN COMPONENTS AND PARTS SUPPLIED AND READILY AVAILABLE

Variation	Price
From	£43750
